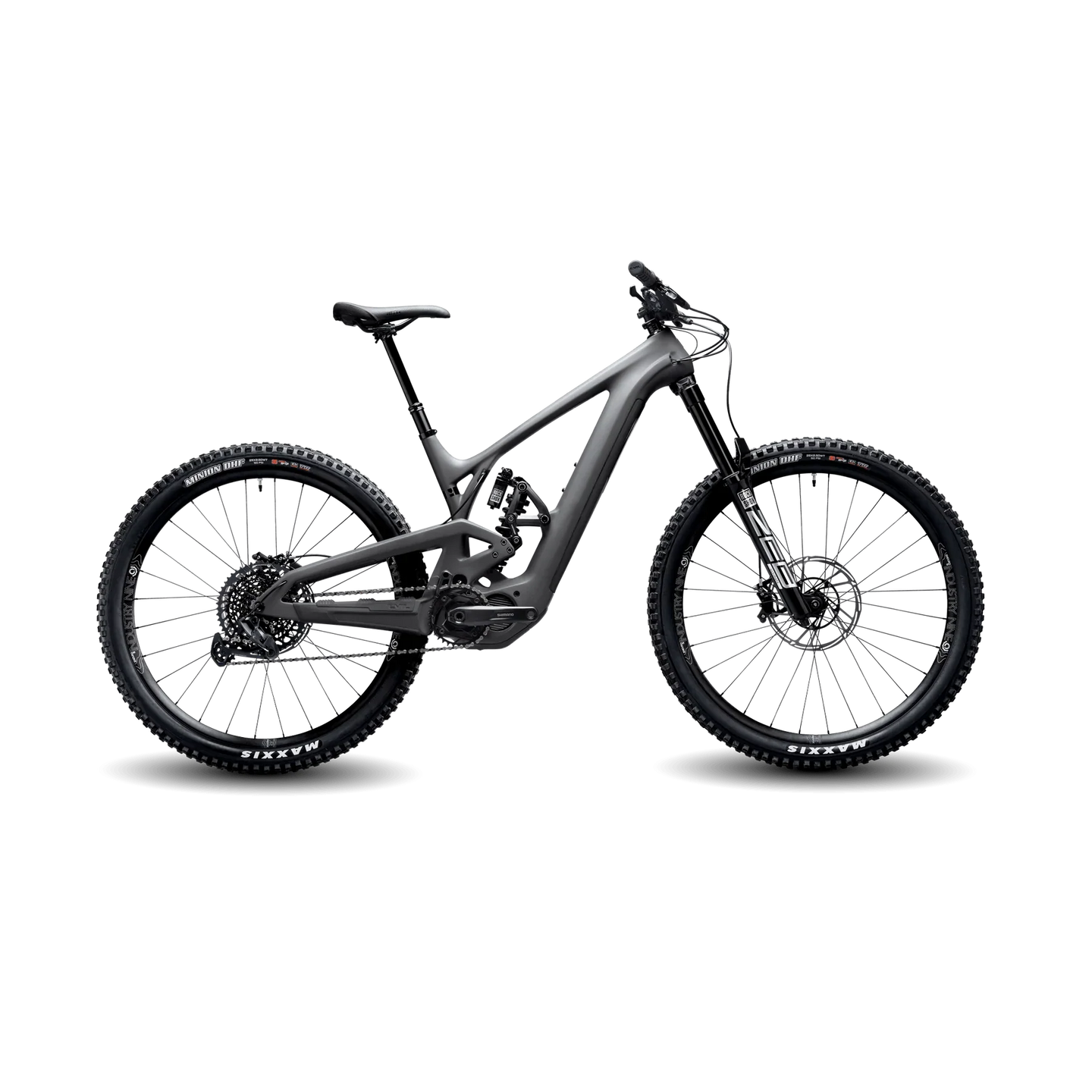

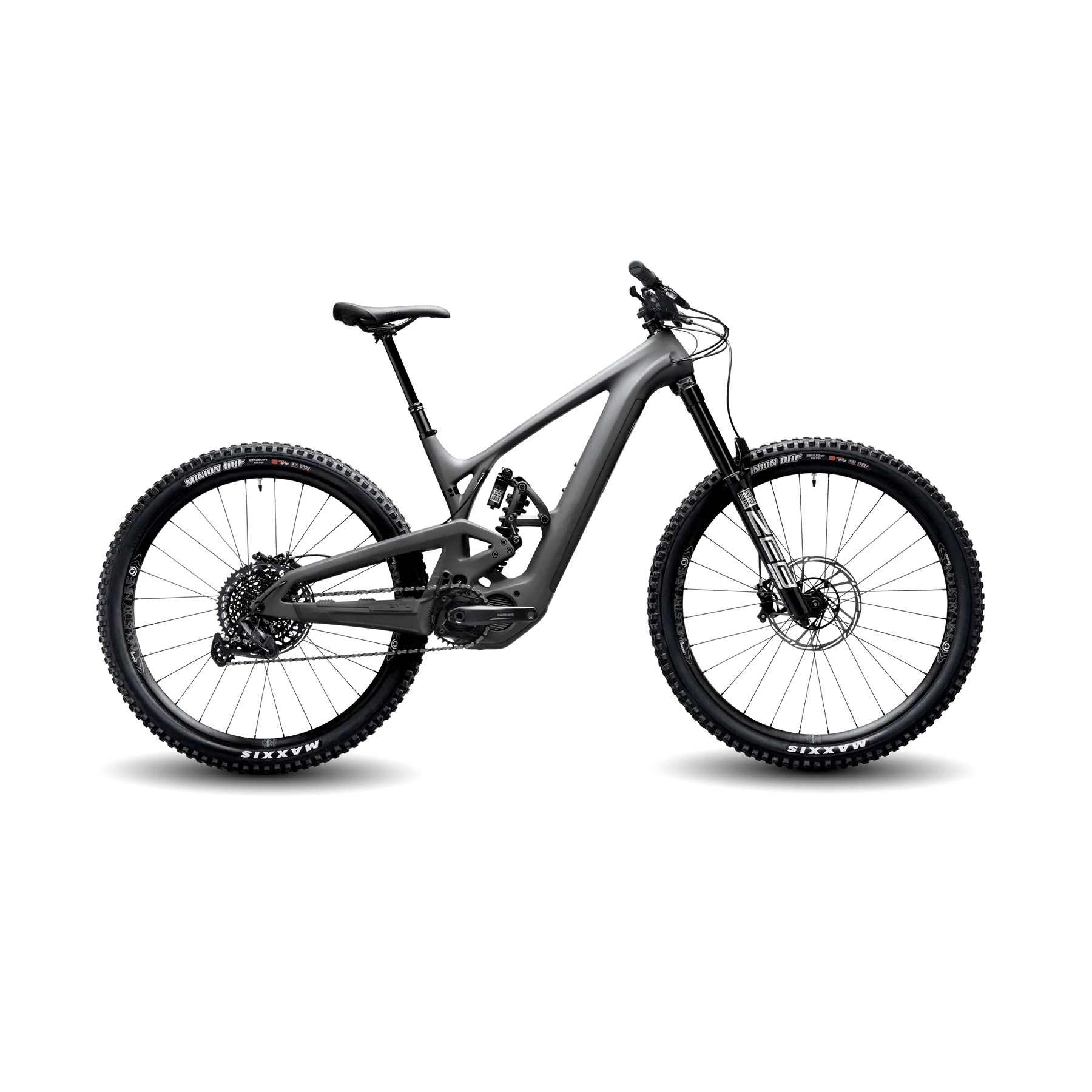

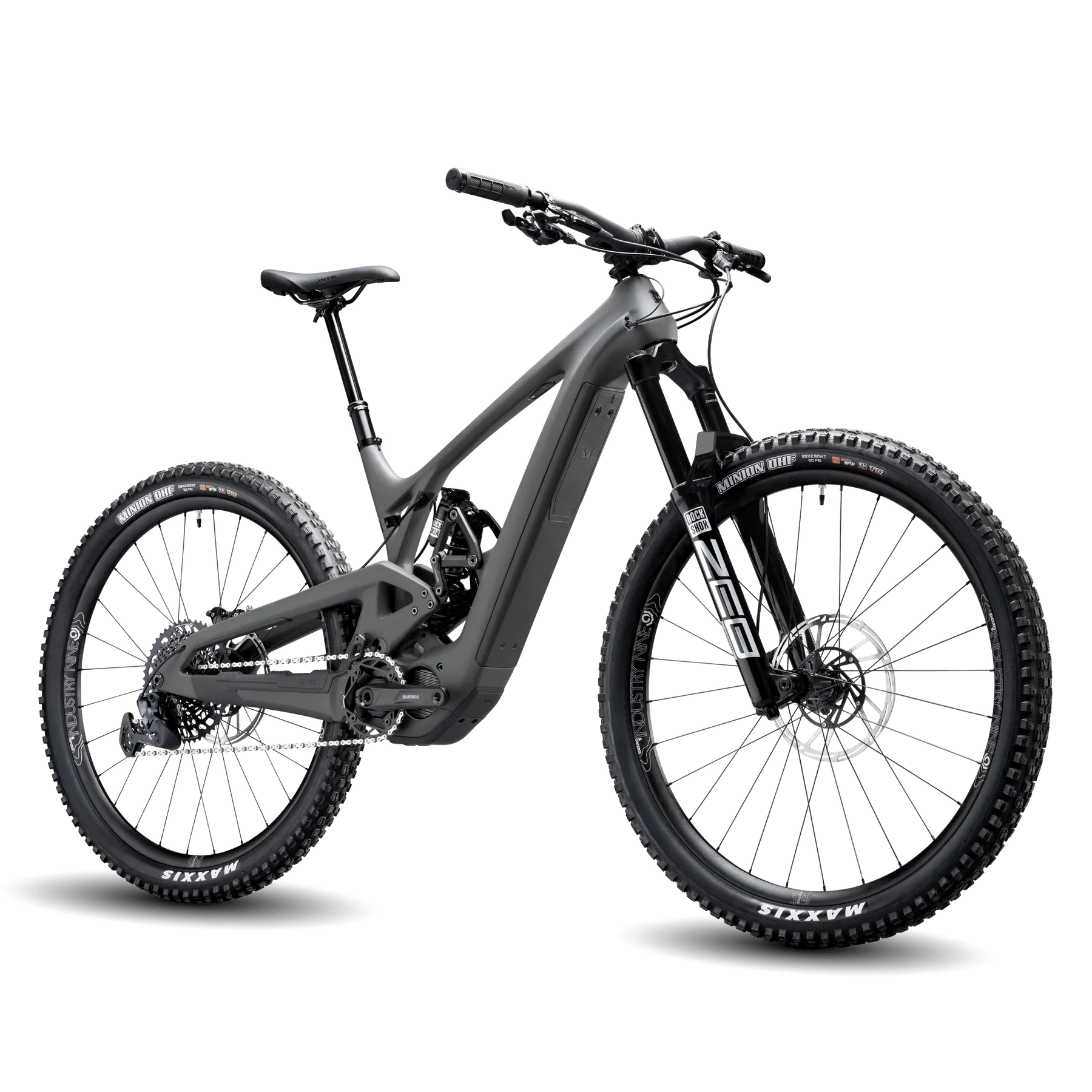

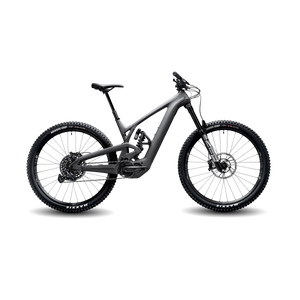

The battery boosted Evil Epocalypse rides above two 29" wheels with 166mm of rear travel and 170mm below the bars. Posture for this genre-fluid beast closely resembles that of the venerated Evil Wreckoning rip machine, making for a proper dance party deep in the trees. The Evil Epocalyptic lightning flows into a low-slung Shimano EP8 motor to kick out 85Nm of pedal assistance at full throttle, backed by the brand's burly 630Wh battery for max laps. Adding electricity to your stable will morph rest days on the couch into trail parties with friends. We're confident your sofa won't mind.
|
Product |
Evil Epocalypse GX Eagle E-Bike |
|
Model Year |
2025 |
|
Riding Type |
Enduro / All-Mountain Freeride / Bike Park |
|
Rider |
Unisex |
|
Sizes and Geometry |
SM (Low, X-Low) MD (Low, X-Low) LG (Low, X-Low) XL (Low, X-Low) View Full Geometry |
|
Wheel Size |
29" |
|
E-Bike Class |
Class 1: Pedal Assist (Pedelecs) |
|
Motor |
Shimano STEPS EP801, 85 Nm max torque |
|
Battery |
Shimano STEPS EN806, integrated, removable via quick release |
|
Battery Capacity |
630 Wh |
|
Display/Remote |
Shimano STEPS EM800 full-color LED display, EM800-L remote switch |
|
Modes |
Boost, Trail, Eco, Walk Assist |
|
Max Speed with Assist |
20 mph (32.2 km/h) |
|
Frame Material |
Carbon Fiber |
|
Frame Material Details |
UD carbon front and rear triangles; rubber-padded motor skid plate; molded chainstay, seatstay, and down tube/battery protection |
|
Rear Travel |
166mm |
|
Rear Shock |
RockShox Super Deluxe Coil Ultimate, trunnion mount, 205mm length x 65mm stroke |
|
Fork |
RockShox ZEB Ultimate, Charger 3 RC2 damper, 38mm stanchions, 44mm offset |
|
Fork Travel |
170mm |
|
Head Tube Diameter |
Tapered, 1.125" top, 1.5" bottom |
|
Headset |
Cane Creek 40 Series, integrated, ZS44/28.6 upper, ZS62/40 lower |
|
Handlebar |
Evil Energy Bar, UD Carbon, 35mm rise, 8° backsweep, 5° upsweep, 35mm clamp diameter, internal wire routing Width: 780mm (SM), 800mm (MD/LG), 810mm (XL) |
|
Stem |
Evil 12 Gauge, 45mm length, 35mm bar clamp |
|
Grips |
Evil Palmela Handerson, lock-on |
|
Brakes |
SRAM Code RSC, 4-piston, Jagwire Pro LR2 220mm CENTER LOCK rotors with rear sensor magnet |
|
Brake Levers |
SRAM Code RSC, tool-free Reach Adjust and Contact Point Adjust |
|
Drivetrain |
1x |
|
Shifters |
SRAM GX Eagle, 12-speed |
|
Front Derailleur |
None |
|
Rear Derailleur |
SRAM GX Eagle, 12-speed |
|
Chainguide |
Evil integrated upper slider |
|
Cranks |
Shimano EM600, 160mm length |
|
Chainrings |
SRAM Eagle |
|
Pedals |
None |
|
Chain |
SRAM GX Eagle, 12-speed, with PowerLock |
|
Cassette |
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth |
|
Rims |
Industry Nine Enduro S, 30.5mm inner width Option: Industry Nine GR310 Carbon |
|
Hubs |
Industry Nine Hydra, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost) rear with XD driver |
|
Spokes |
Industry Nine Enduro S wheelset |
|
Tires |
Maxxis Minion DHF, EXO casing, TR, 29" x 2.5" WT |
|
Saddle |
WTB Volt Medium, chromoly rails, 142mm width |
|
Seatpost |
BikeYoke Revive dropper Drop: 125mm (SM), 160mm (MD), 185mm (LG/XL) |
|
Seatpost Diameter |
30.9mm |
|
Seatpost Clamp |
Single bolt, 34.9mm |
|
Rear Dropout / Hub Dimensions |
12mm x 157mm (SuperBoost) |
|
Max. Tire Size |
29" x 2.6" |
|
Bottle Cage Mounts |
One inside front triangle |
|
Colors |
Wasabi Shadow |
|
Warranty |
Lifetime frame and pivot bearings, 2 years paint |
|
Weight |
|
|
Miscellaneous |
• DELTA System rear suspension design • Geometry adjustable via flip chip in linkage • Fully-guided internal cable routing • SRAM UDH (Universal Derailleur Hanger) • Power settings customizable via Shimano STEPS E-Tube Project Mobile App • Includes Shiano 8004-2 battery charger • Includes Stan's NoTubes tubeless tire sealant |
