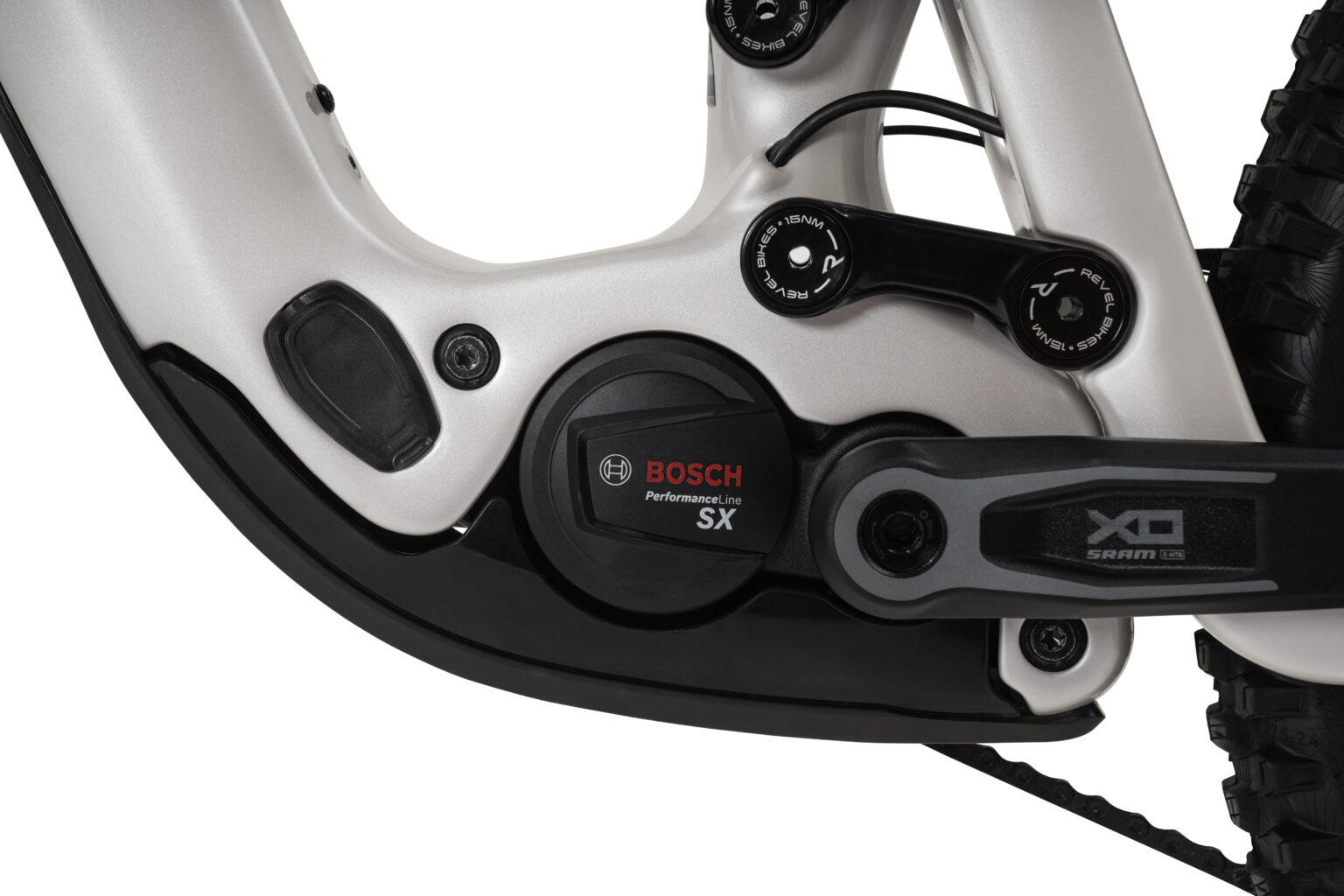

The Revel ReRun rewrites the script for what an e-enduro bike can be. Built around the lightweight Bosch Performance Line SX motor and a 400Wh battery, the Revel ReRun delivers a natural-feeling, mid-power boost — perfect for riders who want more trail time without the bulk of a full-power e-bike.
With 165mm of CBF-driven rear travel, a 170mm fork, and modern geometry, the Revel ReRun offers the perfect balance of traction, control, and downhill confidence. It’s a bike built for big mountain missions, extra speedy post-work day laps, and everything in between.
Designed for durability and performance, the frame features a new hardware system that moves all bearings into the CNC-machined links—resulting in tighter tolerances, a stiffer chassis, longer bearing life, and reduced noise. Additionally, the added frame protection provide increased utility and convenience to match its all-terrain capabilities.
For riders looking to stretch the adventure even further, the Revel ReRun is compatible with the Bosch PowerMore 250Wh range extender—unlocking longer days and bigger objectives with ease.
Lightweight, responsive, and unapologetically capable, the ReRun is a trail-slaying, limit-pushing ride that brings the soul of enduro to the world of eMTB.
|
Product |
Revel ReRun SRAM Eagle 90 E-Bike |
|
Model Year |
2025 |
|
Riding Type |
Enduro / All-Mountain Freeride / Bike Park |
|
Rider |
Unisex |
|
Sizes and Geometry |
SM MD LG XL |
|
Wheel Size |
27.5" (650b) 29" Other: Mullet |
|
E-Bike Class |
Class 1: Pedal Assist (Pedelecs) |
|
Motor |
Bosch Performance Line SX, Smart System, 55 Nm max torque, 250 W continuous power, 600 W max power |
|
Battery |
Bosch Compact PowerTube, Smart System, integrated Option: Bosch PowerMore 250 W range extender |
|
Battery Capacity |
400 Wh |
|
Display/Remote |
Bosch System Controller, top tube integrated; Bosch Mini Remote |
|
Modes |
Turbo, eMTB, Tour+, Eco+, Walk Assist |
|
Max Speed with Assist |
USA/Canada/New Zealand: 20 mph (32.2 km/h) Other: 15.5 mph (25 km/h) |
|
Frame Material |
Carbon Fiber |
|
Frame Material Details |
Thermoset Carbon front and rear triangles, CNC-machined links; molded chainstay, seatstay, and lower down tube protection |
|
Rear Travel |
165mm |
|
Rear Shock |
RockShox Super Deluxe Ultimate, 230mm length x 65mm stroke |
|
Fork |
RockShox ZEB Select+, 38mm stanchions |
|
Fork Travel |
170mm |
|
Head Tube Diameter |
Tapered, 1.125" top, 1.5" bottom |
|
Headset |
Cane Creek 40 Series, press-fit, ZS44 upper, ZS56 lower |
|
Handlebar |
Race Face Turbine Alloy, 780mm width, 20mm rise, 35mm clamp diameter |
|
Stem |
Race Face Turbine, 40mm length, 35mm bar clamp |
|
Grips |
Race Face Chester |
|
Brakes |
SRAM Maven Silver, 4-piston Rotors: SRAM CenterLine, 6-bolt, 200mm |
|
Brake Levers |
SRAM Maven Silver Stealth, tool-free reach adjust and contact point adjust |
|
Drivetrain |
1x |
|
Shifters |
SRAM Eagle 90 Transmission, 12-speed |
|
Front Derailleur |
None |
|
Rear Derailleur |
SRAM Eagle 90 Transmission, 12-speed |
|
Chainguide |
Upper slider |
|
Cranks |
e*thirteen Helix Core e*spec Alloy, 160mm length |
|
Chainrings |
SRAM Eagle Transmission, 34 tooth |
|
Pedals |
None |
|
Chain |
SRAM GX Eagle Transmission Flattop, 12-speed |
|
Cassette |
SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth |
|
Rims |
Crankbrothers Synthesis Enduro V2 Alloy |
|
Hubs |
Crankbrothers, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with 36-tooth Ratchet freehub and XD driver |
|
Spokes |
Crankbrothers wheelset |
|
Tires |
Front: Continental Kryptotal F, Enduro casing, Soft compound, 29" x 2.6" Rear: Continental Kryptotal R, Enduro casing, Soft compound, 27.5" x 2.4" |
|
Saddle |
SDG Bel-Air V3 MAX, Lux-Alloy rails |
|
Seatpost |
Crankbrothers Highline 7 dropper, SRAM remote lever Drop: 125mm (SM), 150mm (MD), 170mm (LG), 200mm (XL) |
|
Seatpost Diameter |
31.6mm |
|
Seatpost Clamp |
Single bolt |
|
Rear Dropout / Hub Dimensions |
12mm x 148mm (Boost) |
|
Max. Tire Size |
27.5" x 2.6" |
|
Bottle Cage Mounts |
One inside front triangle, one under down tube, plus accessory mounts under top tube |
|
Colors |
Cashflow, TK-421 |
|
Warranty |
Lifetime frame, 2 years Bosch e-bike components, 1 year Revel components |
|
Weight |
20.50 Kgrs. |
|
Miscellaneous |
• CBF (Canfield Balance Formula) rear suspension design • Mixed ("Mullet") wheels: 29" front, 27.5" rear • Fully-guided internal cable routing • SRAM UDH (Universal Derailleur Hanger) • Weight listed for size LG • Power settings customizable via Bosch eBike Flow Mobile App • Includes Stan's NoTubes tire sealant • Photos may show alternate builds |
